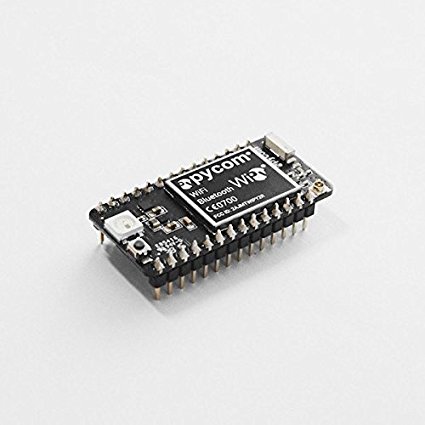

Pycom WiPy 2.0

Pycom WiPy 2.0 Pycom WiPy 2.0 è una piccola piattaforma di sviluppo con Micro Python per l'Internet delle Cose.

Pycom WiPy 2.0, ulteriori informazioni

WiPy 2.0, la piccola piattaforma di sviluppo WiFi e Bluetooth con Micro Python per l'Internet delle Cose. Con un raggio di 1 KM per il WiFi, lo stato dell'arte dei chipset e doppio processore Espressif ESP32, il WiPy è apposta per portare l'Internet delle Cose al livello successivo.

Caratteristiche

- Powerful CPU, BLE and state of the art WiFi radio
- 1KM WiFi range
- MicroPython enabled, the Linux of IoT for fast deployment
- Fits in a standard breadboard (with headers)
- Ultra-low power usage: a fraction compared to other connected micro
controllers

Processing

- Espressif ESP32 chipset
- Dual processor + WiFi radio system on chip
- Network processor handles the WiFi connectivity and the IPv6 stack
- Main processor is entirely free to run the user application
- An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and
control most of the internal peripherls during deep-sleep mode while only
consuming 25uA

Interfaces

- 2 x UART, 2 x sPI, I2C, I2S, micro SD card
- Analog channels: 8x12 bit ADCs
- Timers: 4x16 bit with PWM and input capture
- DMA on all peripherals
- GPIO: Up to 24

Hash/Encryption

SHA, MD5, DES, AES

WiFi

802.11b/g/n 16mbps

Bluetooth

Low energy and classic

RTC

Running at 32KHz

Power

- 3.3V to 5.5V
- 3V3 output capable of sourcing up to 550mA

Security & Certifications

- SSL/TLS support
- WPA Enterprise security
- FCC - 2AJMTWIPY2R
- CE 0700

Memory

- RAM: 512KB
- External flash: 4MB
- Hardware floating point acceleration
- Python multi-threading

Size

42mm x 20mm x 2.5mm (excluding headers)

Weight

- 5g
- 29g (Packaged)
