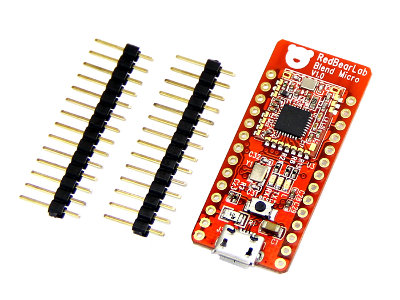

Seeedstudio Blend Micro

Seeedstudio Blend Micro is a board to be associated to a mobile device such as a smartphone. It "blends" Arduino with Bluetooth 4.0 Low Energy (aka BLE or Bluetooth Smart) for applications of various types such as the Internt of Things.

Seeedstudio Blend Micro, more information

Blend Micro is an integrated developement board, we have "blend"ed Arduino with Bluetooth 4.0 Low Energy (aka BLE or Bluetooth Smart) into a single board. It is targeted for makers to develop low power Internet-Of-Things (IoT) projects quickly and easily.

Blend Micro runs as BLE peripheral role only, it allows BLE central role devices to establish connection with. It supports various models of iPhone (iOS 7 or above), smartphone with Android 4.3 or above, devices with Windows 8.1, Mac OSX 10.9.2 or Linux with BlueZ 5.1.

Specification:

Microcontroller: Atmel ATmega32U4
Wireless Chip: Nordic nRF8001
Operating Voltage: 3.3V
Input Voltage: 5V (USB),3.3-12V (DC input or VIN)
Clock Speed: 8MHz
Connectivity: Bluetooth 4.0 Low Energy,micro-USB,Serial (TX/RX),I2C,SPI
Flash Memory: 32KB (of which 4 KB used by bootloader)
SRAM: 2.5KB
EEPROM: 1KB
Dimensions: 83 x 58 x 25mm with packaging
Weight: 4g (19g with packaging)
I/O Pins: 24
