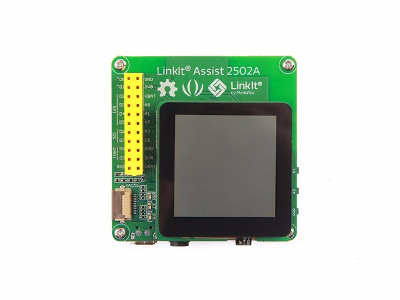

Seeedstudio LinkIt Assist 2502

Seeedstudio LinkIt Assist 2502 is a high performance development board for prototyping Wearables and Internet of Things devices.

Seeedstudio LinkIt Assist 2502, more information

LinkIt Assist 2502, a co-design product by Seeed Studio and MediaTek, is development board for prototyping Wearables and Internet of Things (IoT) devices that can connect to other smart devices or directly to cloud applications and services.

The development board includes a MT2502A IoT SiP Core module from AcSiP - AI2502S05, a MT5931 802.11b/g/n WLAN SiP Module - CW01S, a MT3332 GNSS Host-Based Solution SiP Module - CW03S, and an exchangeable 240X240 16-bit color capacitive touch LCM board.

The board offers high performance and low power consumption to devices with sophisticated communication or location acquisition requirements. With LinkIt Assist 2502, it's easier and cheaper for device developers to produce desirable, functional wearable products prototype.

In addition to pin breakouts, the board also comes with Seeed Xadow interface for connecting to various peripherals.

LinkIt Assist 2502 is fully supported on the MediaTek Labs site: check out the LinkIt section and register here to download the SDK, participate in the Forums, and more.

Features:

• Includes MT2502A, MT5931,and MT3332 modules
• Integrated voice-band, audio-band and baseband analog front-end
• Integrated full-featured power management unit
• Support IEEE 802.11b/g/n and Bluetooth co-existence
• Support GPS, GLONASS, and BeiDou
• Include a 240X240 capacitive touch LCM board
• Low power for battery supply

Specification:

• Power supply: 5V USB power and 3.7V Li-on battery. Battery is required to boot
• IO Voltage: 2.0~3.6V (2.8V Digital Power Source); 1.6~2.0V (1.8V Digital Power Source)
• 3 onboard buttons
• 3.5mm audio jack
• Onboard vibration motor
• Onboard GSM chip antenna, Wi-Fi/BT chip antenna, GPS chip antenna
• Onboard charging via standard Micro USB
• One Micro-SIM card Interface
• Onboard microphone
• One standard Xadow interface
• SPI/I2C/UART/GPIO breakout interface
• Dimension: 53x53x16 mm (include LCM board)

Part list:

• LinkIt Assist 2502 Board x1
• 240*240 Touch LCM Board x1
• Lithium-ion Battery 3.7V-240mAh x1
• Manual x1
